How JINPAT Integrated Pneumatic, Hydraulic, and Electrical Slip Rings Optimize Welding Robot Operati

In automated welding workstations, one of the most persistent headaches for engineers is "cable entanglement." Since welding robotic arms require multi-axis rotational freedom, the external pneumatic hoses and network cables connected to them are highly susceptible to fatigue fractures or mechanical jamming during movement.

Systemic Advantages Offered by JINPAT:

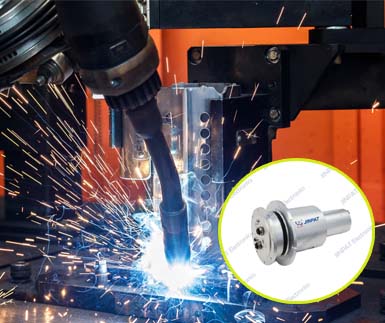

Ultra-Compact Integrated Design: We have integrated two pneumatic channels, ten electrical contact rings, and a set of 100 Mbps Ethernet interfaces into a single, compact slip ring housing. This means that all tubing and cabling can be routed internally through the slip ring, completely eliminating the operational radius limitations imposed by external "tail cables" and significantly boosting the flexibility of the production line.

A Qualitative Leap in Communication Efficiency: By integrating 100 Mbps Ethernet signals, welding equipment transcends its traditional role as a mere mechanical execution tool, upgrading instead to become a critical node within the Internet of Things (IoT). It can transmit welding parameters, fault codes, and high-definition images back to the control center in real-time and instantaneously, empowering enterprises to achieve visualized management of their welding processes.

Durability and Industrial Suitability: This slip ring is specifically engineered to withstand welding spatter and high-temperature environments; its housing features a hardened surface treatment, and its internal contact structure has been optimized for vibration resistance—ensuring an exceptionally long service life, even in the most demanding factory settings.

JINPAT will continue to deepen its expertise in the field of rotary transmission, paving a smooth path for precision manufacturing enterprises worldwide to advance toward "Industry 4.0" through the provision of smarter and more highly integrated slip ring products.
